C-25 2K SIGNPOSTING SYSTEM

vertical sistema para senalizacion
General Information
DIRECT SYSTEM
Support type Surface pretreatment
Steel Degreased
Aluminum Brushed
Galvanized Sand-Blasting
Iron
PVC
ABS Plastic

¿Quieres obtener más información?

ENVIAR CONSULTA

DESCRIPTION AND FEATURES

Paint System for sectors such as Signposting, agricultural machinery and public works, commercial vehicle, forklifts, transport, PVC works...

Excellent adhesion without a primer on many metallic surfaces such as Steel, Aluminium, Galvanized, Brass, Stainless Steel and many plastic surfaces as PVC, PUR, ABS, etc.

Stands our for its hardness, elasticity, gloss and colour inalterability outdoors, and to aggresive environments due to its acrylic nature and high quality pigments.

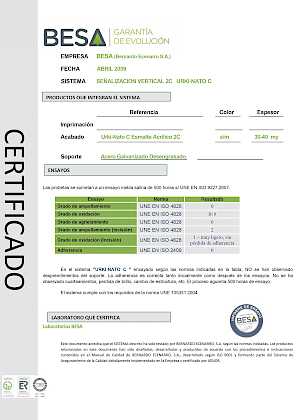

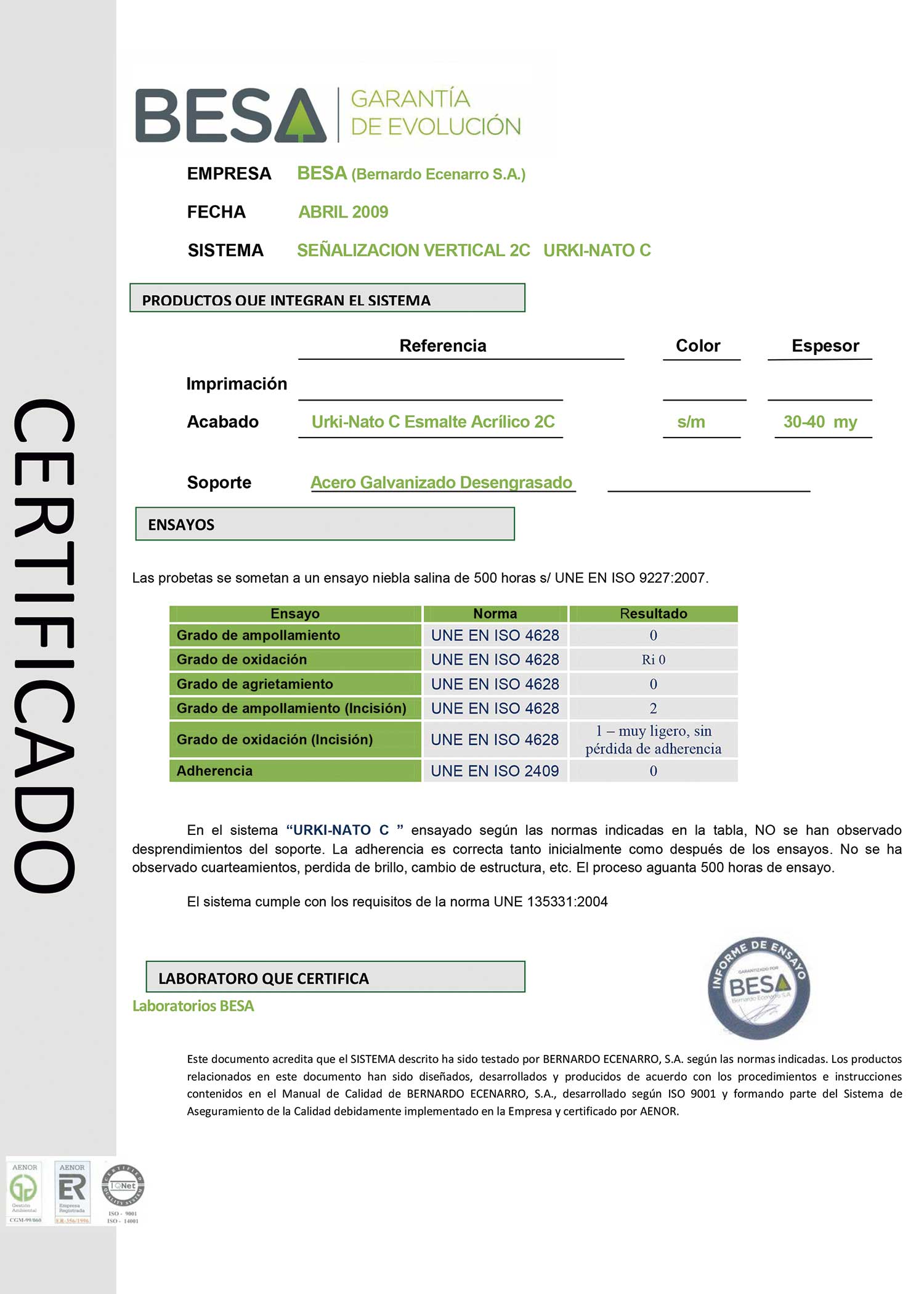

RESISTANCE AND CERTIFICATES

500 H SALT SPRAY TEST (GALVANIZED)

This System is compliant with the UNE 135331:2004 which stablishes the features to fulfill the non reflecting area of the permanent Traffic Signposting.

PRODUCTS

URKI-NATO C 2K UHS Acrylic Topcoat

Physical properties
Type of productAcrylic - Poliurethane/Aliphatic
Density 20 °C1,00 - 1,30
Supply viscosity at 20 °C80 - 120 sec. Ford n.° 4
Solid Content (% weight)50 - 60% (mixed with hardener)
Solid Content (% volume)40 - 45% (mixed with hardener)
V.O.C.578 g/l (ready to use)
Colors/m RAL, UNE, NCS
Features of dry film
Theoretical yield9,5-10 m² / l. (45 my)
Gloss 60 - 60°>80%
Recoatability24 hours

IMPLEMENTATION PROCESS

SURFACE PREPARATION

STEEL
The surfaces should be thoroughly degreased and deoxidized.

APPLICATION

URKI-NATO
  • E-225*
  • >3h.
  • 20-30"
  • URKISOL 900P/8229/3700 15-20% Ø 1,4-1,6 mm
  • 35-50 my
  • 10-15 ́
  • Non sticky 3-4 h 60 °C/30' 70 °C/20' 110 °C/20'
  • 15 ́
  • URKISOL 900P/ 8229 /3700 10-15% 0,009-0,011"
  • URKISOL 900P/8229 /3700 10-15% 0,009-0,011"

* It can be replaced by E-202 (fast) or E-216 (medium) with same mixing ratio.

General Information
DIRECT SYSTEM
Support type Surface pretreatment
Steel Degreased
Aluminum Brushed
Galvanized Sand-Blasting
Iron
PVC
ABS Plastic

Contact us if you have any question or you can't find the system you were looking for.
