B-40 WATERBORNE EPOXY - ACRYL SYSTEM
General Information
2K SYSTEM
CORROSIVITY: C3 | HIGH
CORROSIVITY: C3 | HIGH
| Support type | Surface pretreatment |
|---|---|
| Steel | Degreased |
| Shotblasted steel | Brushed |
| Aluminum | Sand-Blasting |
| Galvanized | |
| Iron |
¿Quieres obtener más información?
ENVIAR CONSULTADESCRIPTION
URA-POX 028 outstands for its quick drying and hardening. Allows the use of succesive layers with 1-2 hours to achieve the required thickness.
URA-PUR 360 is a waterborne enamel that can be used for painting machinery, industrial vehicle, agricultural and public works machinery, wagons, where there is a demand of high glass, hardeness and
flexibility. Resistant to water chemical agents and petrol as high outdoor resistance.

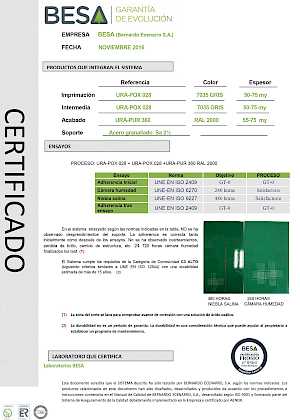

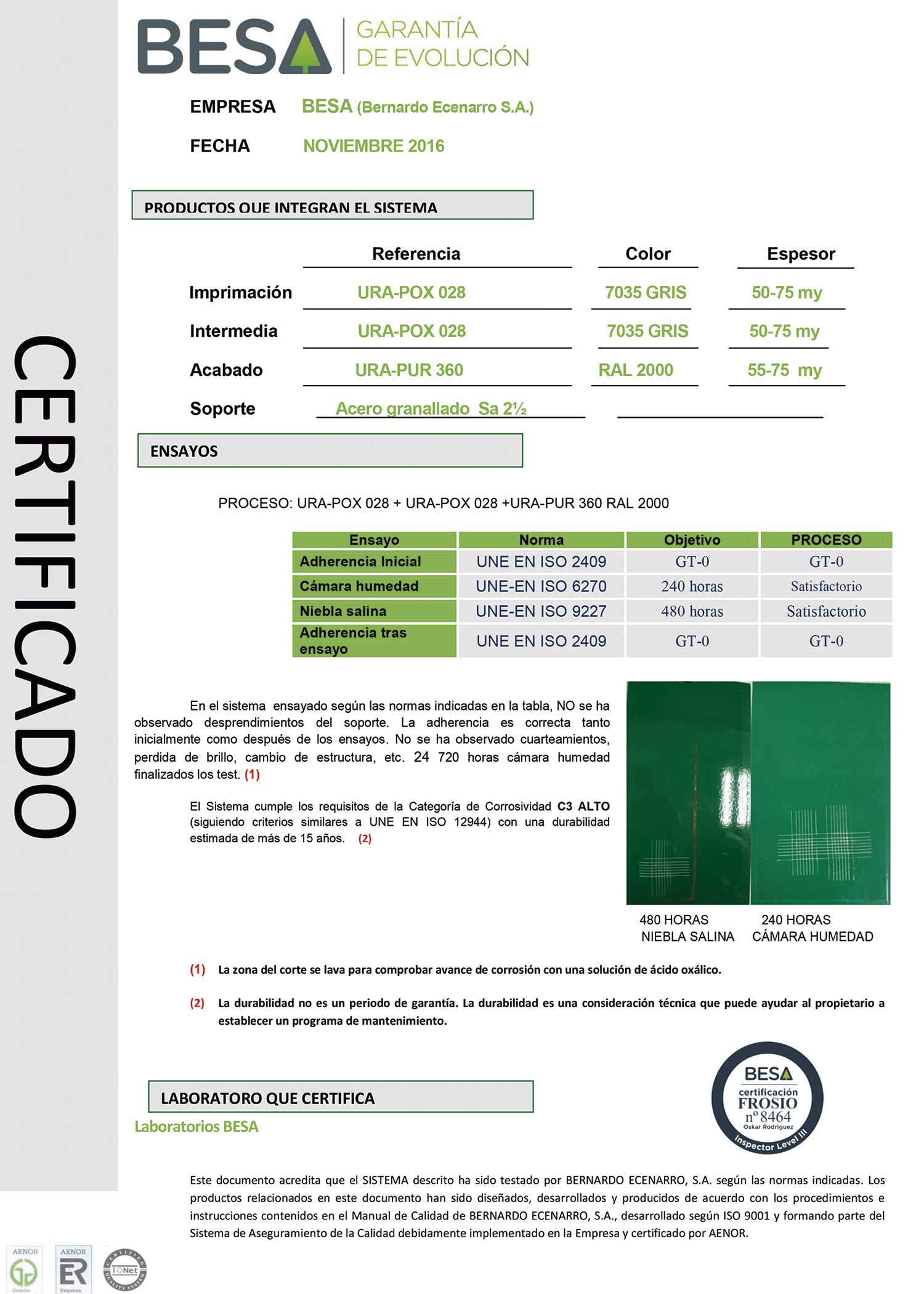

RESISTANCE AND CERTIFICATES
480 H SALT SPRAY TEST
An independent approved Laboratory certifies that this System meets the requirements for category C3 High in accordance to ISO 12944-2 (Shotblasted Steel Sa 2½).
240 H HUMIDITY TEST
PRODUCTS
| Physical properties | |
|---|---|
| Type of product | Epoxy - Zinc Phosphate |
| Density 20 °C | 1,45 ± 0,05 |
| Supply viscosity at 20 °C | 95 - 105 KU |
| Solid content (% weight) | 50 - 60% (mixed with hardener) |
| Solid Content (% volume) | 43 - 47% (mixed with hardener) |
| V.O.C. | < 180 g/l (ready to use) |
| Color | 7035 Grey, 8012 Oxyde |
| Features of dry film | |
|---|---|
| Theoretical yield | 8 - 9 m² / l. (50 my) |
| Gloss 60 - 60° | Matt 5-10% |
| Recoatability | 1-2h. |
| Physical properties | |
|---|---|
| Type of product | Epoxy - Zinc Phosphate |
| Density 20 °C | 1,45 ± 0,05 |
| Supply viscosity at 20 °C | 95 - 105 KU |
| Solid content (% weight) | 50 - 60% (mixed with hardener) |
| Solid Content (% volume) | 43 - 47% (mixed with hardener) |
| V.O.C. | < 180 g/l (ready to use) |
| Color | 7035 Grey, 8012 Oxyde |
| Features of dry film | |
|---|---|
| Theoretical yield | 8 - 9 m² / l. (50 my) |
| Gloss 60 - 60° | Matt 5-10% |
| Recoatability | 1-2h. |
IMPLEMENTATION PROCESS
SURFACE PREPARATION
SHOTBLASTED STEEL
The surface should be shotblasted to Sa 2½ and primed with URA-POX 028.
APPLICATION
URA-POX 028
U-502 6.25:1 weight
2 h
40-50" Spraygun
WATER 25-27%
40-60 my
Non sticky 2 h
30 min 30-60' / 40-60 °C (In cabin)
WATER 20-22% 60-70"
WATER 15-20% 80-120"
URA-PUR 360
U-422
3 h.
40-50" Spraygun 60-70" Air-Mix 70-100" Air-Less
WATER 25-30%
50-75 my
Non Sticky 4-5 h
30' 45-60'/50-60 ºC (In cabin)
WATER 20-25%
WATER 10-20%
