A-25 A-25 HIGH RESISTANCE MIX SYSTEM

alta mixto sistema resistencia pintura a25
General Information
1K SYSTEM
CORROSIVITY: C3 | HIGH
Support type Surface pretreatment
Steel Degreased
Shotblasted steel Brushed
Iron Sand-Blasting

¿Quieres obtener más información?

ENVIAR CONSULTA

DESCRIPTION

System designed for painting metallic structures, machinery, Public Works, Commercial Vehicle, etc... with a high quality and high resistance to corrosion. Urki-Nato offers excellent properties in hardness, elasticity, resistance to abrasive agents such as soap, fuel, grease, oil, chemical products, etc. Can be mixed both with Hardener E-225 (outdoors) or E-277 (indoors).

RESISTANCE AND CERTIFICATES

480 H SALT SPRAY TEST

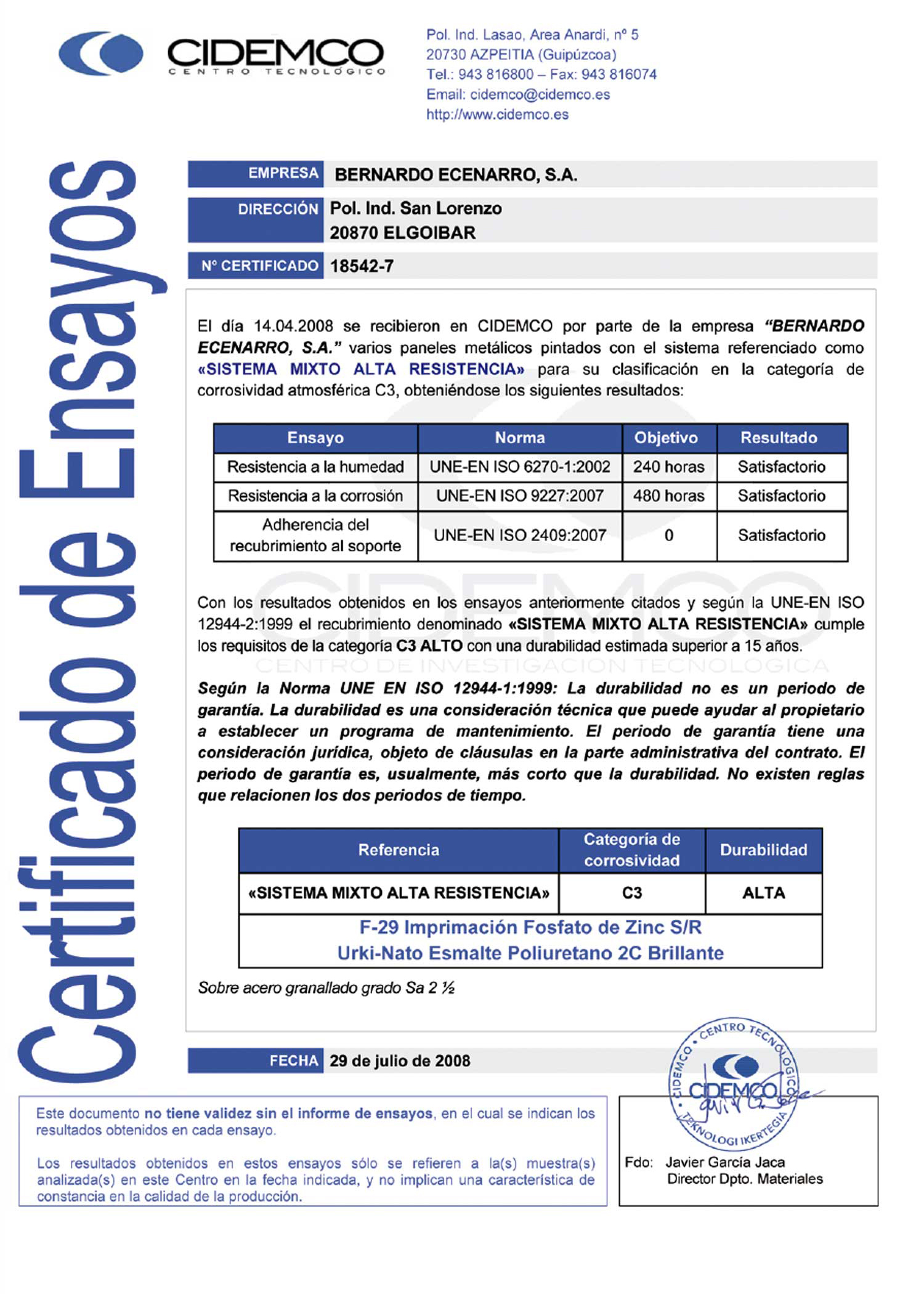

An independent approved Laboratory certifies that this System meets the requirements for category C3 High in accordance to ISO 12944-2 (Shotblasted Steel Sa 2½).

240 H HUMIDITY TEST

URKI-NATO Topcoat is classified as M-1 by an independent approved Laboratory in accodance to UNE 23727:1990.

PRODUCTS

F-29 Q/D ZINC PHOSPHATE PRIMER

Physical properties
Type of productModified Alkyd - Zinc Phosphate
Density 20 °C1,32 - 1,48
Supply viscosity at 20 °C100 - 150 seg. Ford n.° 4
Solid Content (% weight)63 - 69%
Solid Content (% volume)44 - 49%
V.O.C.556 g/l (ready to use)
ColorOxyd 8012, Light Creme 2020
Features of dry film
Theoretical yield12 - 14 m² / l. (35 my)
Gloss 60 - 60°Matt < 5%
Recoatability6 - 8 h.

URKI-NATO 2K Polyurethane Enamel

Physical properties
Type of productPolyester Polyurethane
Density 20 °C1,05 - 1,30
Supply viscosity at 20 °C80 - 90 KU (Stormer)
Solid Content (% weight)55 - 67% (mixed with hardener)
Solid Content (% volume)48 - 54% (mixed with hardener)
V.O.C.540 g/l (ready to use)
Colors/m URKI-SYSTEM
Features of dry film
Theoretical yield12 - 13 m² / l (40 my)
Gloss 60 - 60°>95%
Recoatability18 h. (After this time degrease). To use it as antigraffiti it needs to be sanded and degreased.

IMPLEMENTATION PROCESS

SURFACE PREPARATION

STEEL
The surfaces should be thoroughly degreased and deoxidized or shotblasted.

APPLICATION

F-29
  • 20-25"
  • URKISOL 222 5-10%
  • URKISOL 88 20-25% Ø 1,6-1,8 mm.
  • 30-40 my
  • Non sticky 30'
  • 5-10 ́
  • URKISOL 88 5% 0,011-0,013”
  • URKISOL 88 5% 0,011-0,013”
URKI-NATO
  • E-277 (indoor) E-225 (outdoor)
  • 5 h.
  • 20-22"
  • URKISOL 900P / 8229 25-30% Ø 1,4-1,6 mm.
  • 35-45 my
  • Non sticky 3 - 5 h.
  • 20'
  • 10-15' 70 ºC / 30' (In cabin)
  • URKISOL 900/P / 8229 8-12 % 0,009-0,011” 25-35"
  • URKISOL 900/P / 8229 8-12% 0,009-0,011” 35-40"
General Information
1K SYSTEM
CORROSIVITY: C3 | HIGH
Support type Surface pretreatment
Steel Degreased
Shotblasted steel Brushed
Iron Sand-Blasting

Contact us if you have any question or you can't find the system you were looking for.
