B-50 ACRYLIC PUR- R-1 SYSTEM

sistema acrilico pur b50
General Information
2K SYSTEM
Support type Surface pretreatment
Steel Degreased
Aluminum Brushed
Galvanized
Iron

¿Quieres obtener más información?

ENVIAR CONSULTA

DESCRIPTION

System designed for painting railway vehicules, compliant with the norm EN 45545 to protect passengers and staff from fire.
BESA-CAR for wet on wet application in several coats in high quality avoiding the sinkages of the topcoat. Easy to sand.
URKI-NATO offers excellent properties in hardness, elasticity, resistance to abrasive agents, such as soap, fuel, grease, oil, chemical products, etc. As a topcoat it can be used UURKI-NATO, URKI-NATO Sat and with textured effect or as antigraffiti.

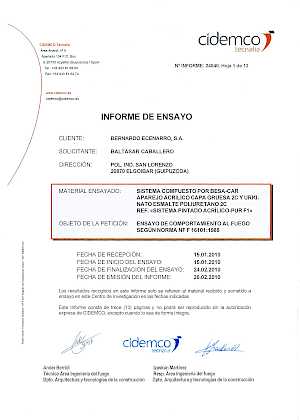

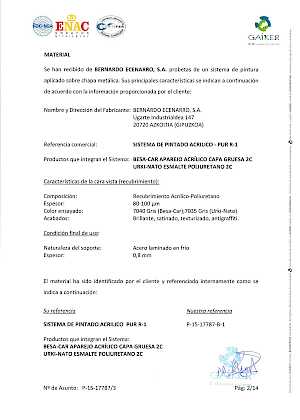

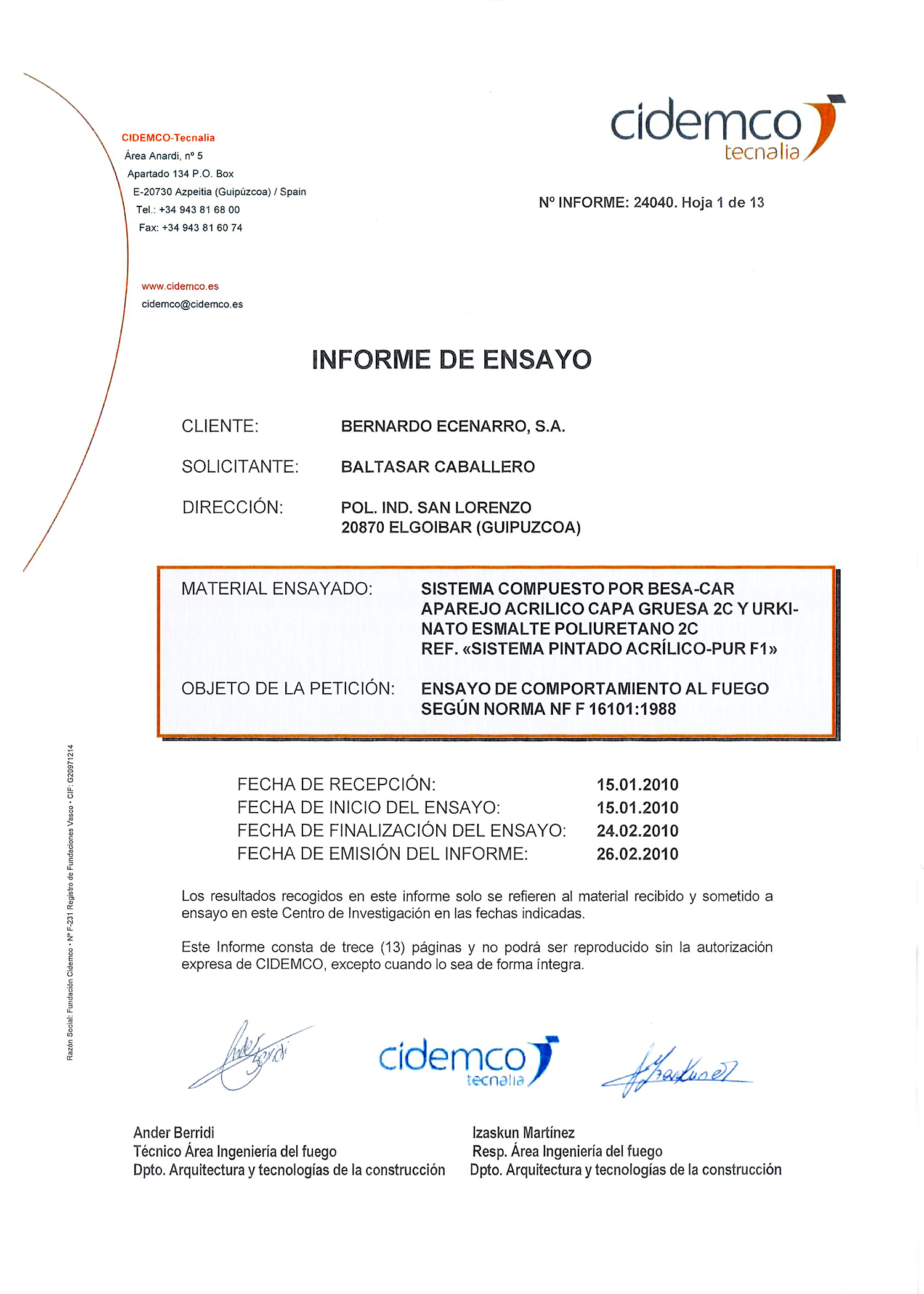

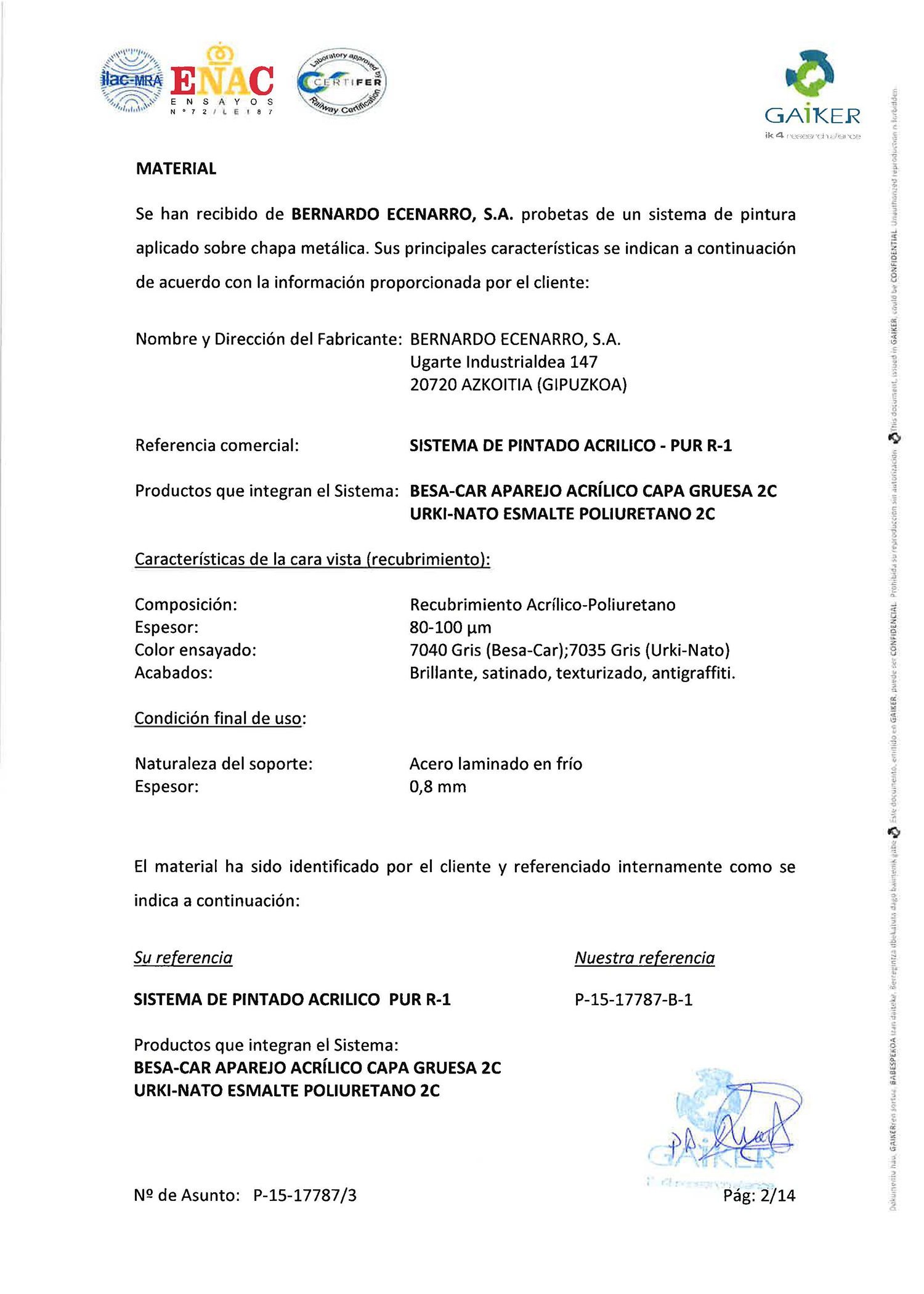

RESISTANCE AND CERTIFICATES

Risks levels HL1, HL2 & HL3 have been achieved according to Norm UN EN 45546 following the requirements from Norm R1, R2, R3, R7 & R17.

PRODUCTS

BESA-CAR 2K HS Filler

Physical properties
Type of productAcrylic-PUR
Density 20 °C1,59 ± 0,05
Supply viscosity at 20 °C100 - 105 KU (Stormer)
Solid Content (% weight)65-69% (mixed with hardener)
Solid Content (% volume)43-47% (mixed with hardener)
V.O.C.492 g/l (ready to use)
Color7035 Grey, 7016 Grey, 7040 Grey
Features of dry film
Theoretical yield9-10 m² / l (50 my)
Gloss 60 - 60°Matt-Satin
Recoatability2-3h.

URKI-NATO 2K Polyurethane Enamel

Physical properties
Type of productPolyester Polyurethane
Density 20 °C1,05 - 1,30
Supply viscosity at 20 °C80 - 90 KU (Stormer)
Solid Content (% weight)55 - 64% (mixed with hardener)
Solid Content (% volume)48 - 51% (mixed with hardener)
V.O.C.540 g/l (ready to use)
Colors/m URKI-SYSTEM
Features of dry film
Theoretical yield12-13 m² / l (40 my)
Gloss 60 - 60°> 95%
Recoatability

18 h (after this time degrease). To use it as antigraffiti it needs to be sanded and degreased.

URKI-NATO SAT 2K Satin Polyurethane Enamel

Physical properties
Type of productPolyester Polyurethane
Density 20 °C1,10 ± 1,35
Supply viscosity at 20 °C100 - 120 sec. Ford n.° 4
Solid Content (% weight)55 - 64% (mixed with hardener)
Solid Content (% volume)44 - 48% (mixed with hardener)
V.O.C.546 g/l (ready to use)
Colors/m URKI-SYSTEM
Features of dry film
Theoretical yield11 - 12 m² / l (40 my
Gloss 60 - 60°20-30% (E-225)
Recoatability

12 h. To use it as antigraffiti it needs to be sanded and degreased.

IMPLEMENTATION PROCESS

SURFACE PREPARATION

CAST IRON STEEL
The surfaces should be degreased and free of dust.

APPLICATION

BESA-CAR
  • E-224 medium E-202 fast
  • 2h. E-224 1h. E-202
  • 70-80"
  • URKISOL 8229 10% Ø 1,8-2.0 mm.
  • 100-150 my
  • 45' E-224 20' E-202
  • 12-15 ́
  • 5-10' 30'/60 °C E-224 20'/60 °C E-202
  • 3-4h. E-224 2h. E-202 P320
URKI-NATO
  • E-277 (indoors) E-225 (outdoors)
  • 3 h
  • 20-22"
  • URKISOL 900P / 8229 25-30%
  • 35-45 my
  • 3-5 h Non Sticky.
  • 20'
  • 10-15' 70 ºC / 30' (In cabin)
  • URKISOL 900/P / 8229 8-12 % 25-35" 0,009-0,011”
  • URKISOL 900/P / 8229 8-12% 35-40" 0,009-0,011”
URKI-NATO SAT
  • E-277 (indoor) E-225 (outdoor)
  • 5 h.
  • 20-22"
  • URKISOL 900P / 8229 15-20%
  • 35-45 my
  • Touch free 30' Non sticky 3-4 h
  • 20'
  • 10-15' 70 ºC/30' (In cabin)
  • URKISOL 900/P / 8229 8-12 % 25-35" 0,009-0,011”
  • URKISOL 900/P / 8229 8-12% 35-40" 0,009-0,011”
General Information
2K SYSTEM
Support type Surface pretreatment
Steel Degreased
Aluminum Brushed
Galvanized
Iron

Contact us if you have any question or you can't find the system you were looking for.
