B-20 EPOXY-PUR ORNAMENTAL STEEL WORKS SYSTEM

b20 mobiliario pur urbano epoxi sistema
General Information
2K SYSTEM
Support type Surface pretreatment
Steel Degreased
Aluminum Brushed
Galvanized
Iron

¿Quieres obtener más información?

ENVIAR CONSULTA

DESCRIPTION

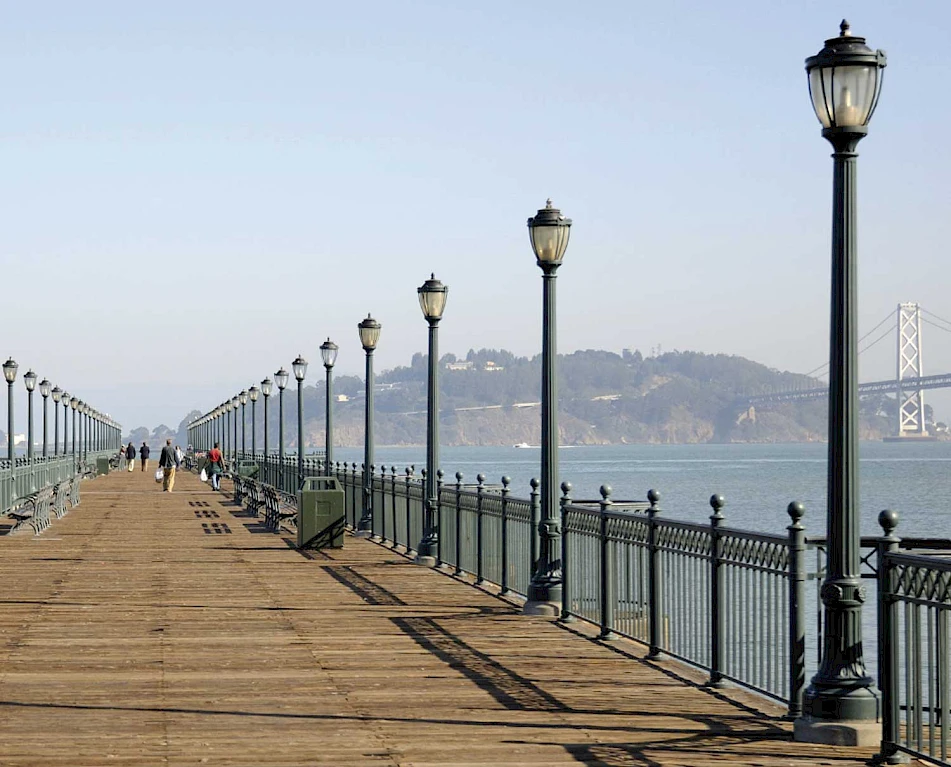

Paint System for Ornamental Steel Works, such as gates, streetlamps, handrails, doors, metallic structures, etc... as a protective and decorative agent.
F-294/2 High Solid Primer, formulated with an Epoxy resine and hardened with Polyamide with its high content of antirust pigment offers the system an excellent antirust prection. Suitable for wet on wet application after 20-30 minutes.

URKI-MIC provides, through its metallic pigment formulation, an excellent protection for steel and metal under all weather conditions, and a pleasant look of cast iron parts.
The complete System provides a high resistance even in coastal areas.

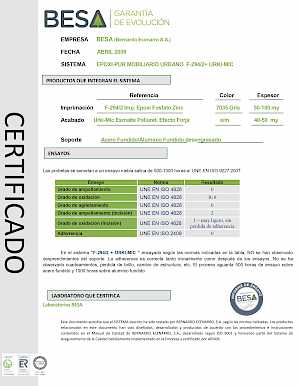

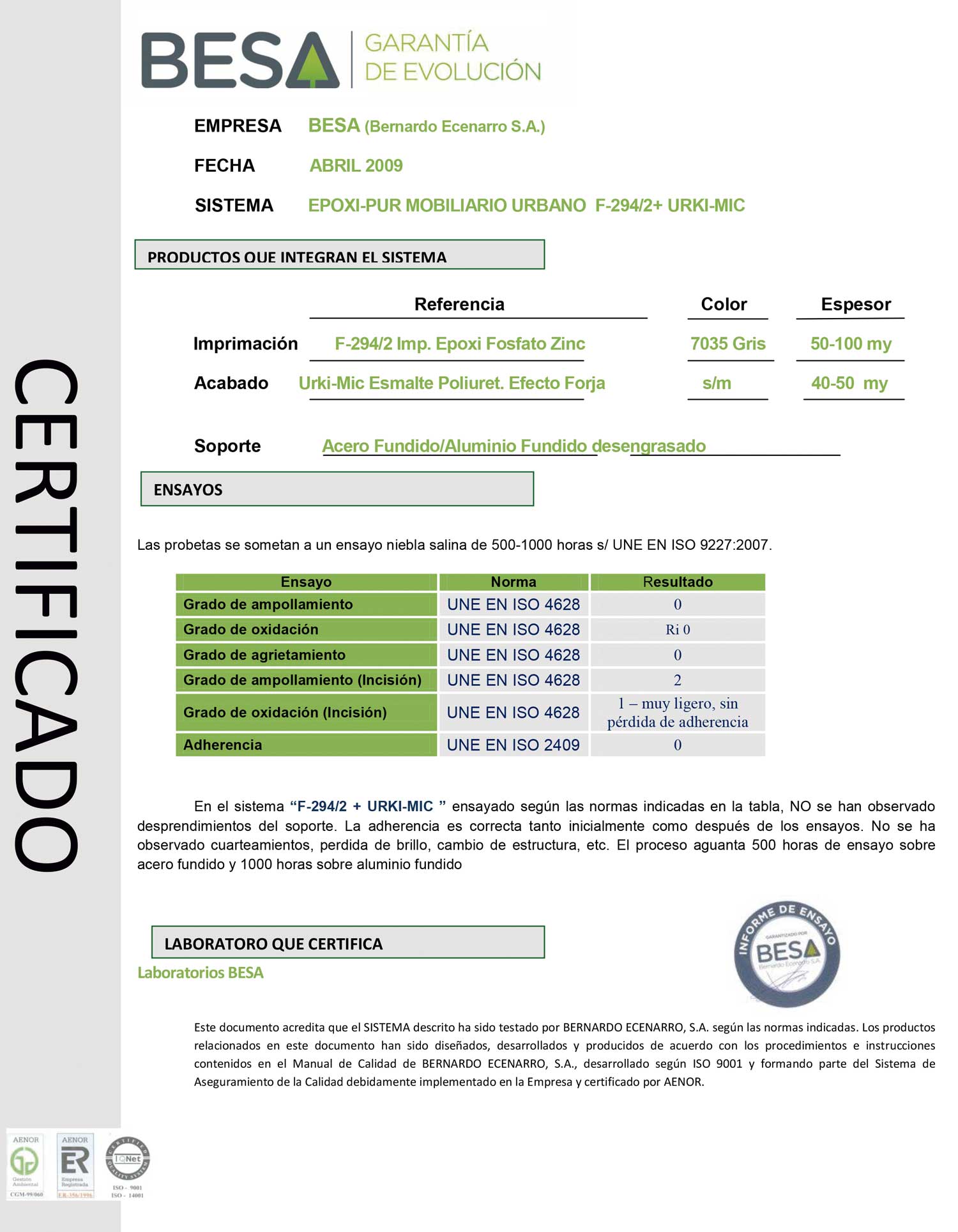

RESISTANCE AND CERTIFICATES

500 H SALT SPRAY TEST

This system resists 500h on the Salt Spray Test in cast iron steel and 1,000h in cast aluminium in accordance to ISO 9227:2007.

PRODUCTS

F-294/2 2K High Build Epoxy Primer

Physical properties
Type of productZinc Phosphate Epoxy Polyamide
Density 20 °C1,64 ± 0,05
Supply viscosity at 20 °C80 - 90 KU (Stormer)
Solid Content (% weight)

66 - 70% (mixed with hardener)

Solid Content (% volume)43 - 47% (mixed with hardener)
V.O.C. (2004/42/CE) II B. (c) (540)514 g/l (ready to use)
ColorGrey 7035, Beige 1111
Features of dry film
Theoretical yield8 - 9 m² / l. (50 my)
Gloss 60 - 60°Matt Satin 5 -10%
Recoatability20 - 30 min.

URKI-MIC 2K Forge Effect Polyurethane Enamel

Physical properties
Type of productPolyester Polyurethane
Density 20 °C1,58 ± 0,03
Supply viscosity at 20 °C100 - 120 KU (Stormer)
Solid Content (% weight)65 - 69% (mixed with hardener)
Solid Content (% volume)46 - 50% (mixed with hardener)
V.O.C. (2004/42/CE) II A. (j) (550/500)487 g/l (ready to use)
Colors/m URKI-SYSTEM
Features of dry film
Theoretical yield9 - 10 m² / l (50 my)
Gloss 60 - 60°Matt
Recoatability12 h.

IMPLEMENTATION PROCESS

SURFACE PREPARATION

CAST IRON STEEL, ZINC PLATED STEEL & CAST ALUMINIUM
The surfaces should be thoroughly de- greased and deoxidized or shotblasted.

APPLICATION

F-294/2
  • E-344/F 5:1 weight
  • 24 h
  • 30±5"
  • No dilution. For touch up.
  • URKISOL 357 / 394 10-15% Ø 1,6-1,8 mm.
  • 50-100 my
  • Non sticky 45'
  • 15-30' 80 °C/30 min. (In cabin)
  • URKISOL 394 5-10% 0,013-0,015"
  • URKISOL 394 5-10% 0,013-0,015"
URKI-MIC
  • E-225
  • 4 h.
  • 30±5"
  • URKISOL 8229 5-10%
  • URKISOL 900P 15-20% Ø 1,6-1,8 mm.
  • 40-50 my
  • Non sticky. 3 h.
  • URKISOL 900P 10-15% 0,013-0,015"
  • URKISOL 900P 10-15% 0,013-0,015"
General Information
2K SYSTEM
Support type Surface pretreatment
Steel Degreased
Aluminum Brushed
Galvanized
Iron

Contact us if you have any question or you can't find the system you were looking for.
