B-25 LOW VOC EPOXY ACRYLIC- PUR SYSTEM
General Information
2K SYSTEM
CORROSIVITY: C4 | HIGH
CORROSIVITY: C4 | HIGH
| Support type | Surface pretreatment |
|---|---|
| Steel | Degreased |
| Shotblasted steel | Brushed |
| Aluminum | Sand-Blasting |
| Galvanized | |
| Iron |
Sectors
¿Quieres obtener más información?
ENVIAR CONSULTADESCRIPTION
Paint System developed for Commercial Vehicle , machinery in general and any other sector where a high resistance both to oxidation and open air, as well as a reduction in VOC is demanded.
F-296/2 Ultra High Solid Primer, formulated with an Epoxy resine and hardened with Polyamide with its high content of antirust pigment provides the system an excellent antirust protection. Suitable for wet on wet application after 20-30 minutes. The URKI-VOC Ultra High Solid topcoat offers excellent elasticity, body, gloss and outdoor resistance.
This system is compliant with the current legislation in the European Directive 2004/42/CE for Car Refinish. Also used as an alternative to conventional processes for the reduction of VOC emissions, in order to help fulfill the Directive 1999/13/CE. The system fulfills the requirements of the Test of Global Migration referred to the contact with food for the simulants B and D2 of Directive 85/522/CEE, based on Regulation 10/2011.
RESISTANCE AND CERTIFICATES
720 H SALT SPRAY TEST

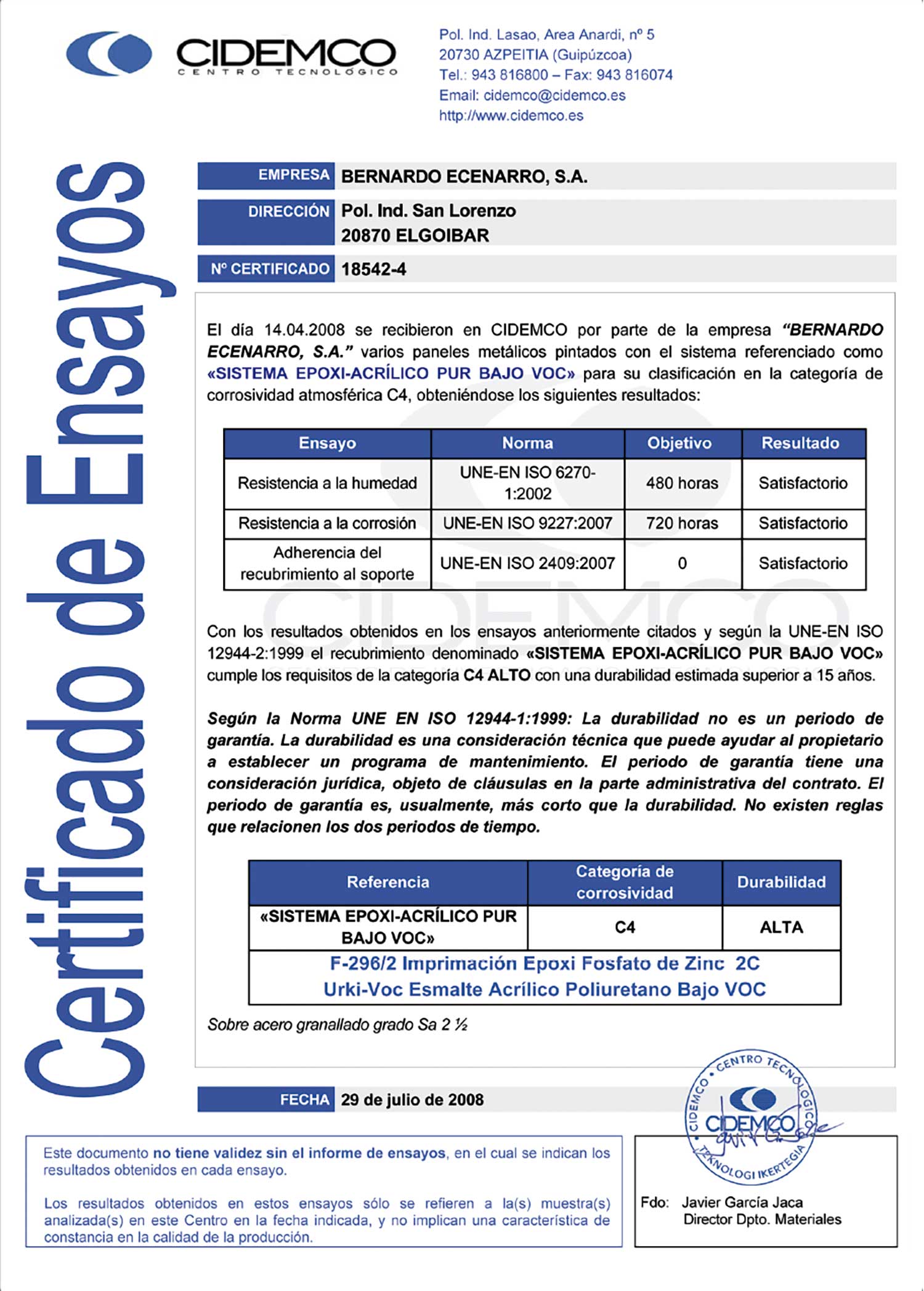

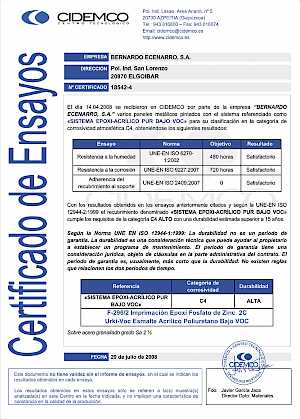

An independent approved Laboratory certifies that this System meets the requirements for category C4 High in accordance to ISO 12944-2 (Shotblasted Steel Sa 2½).
480 H HUMIDITY TEST

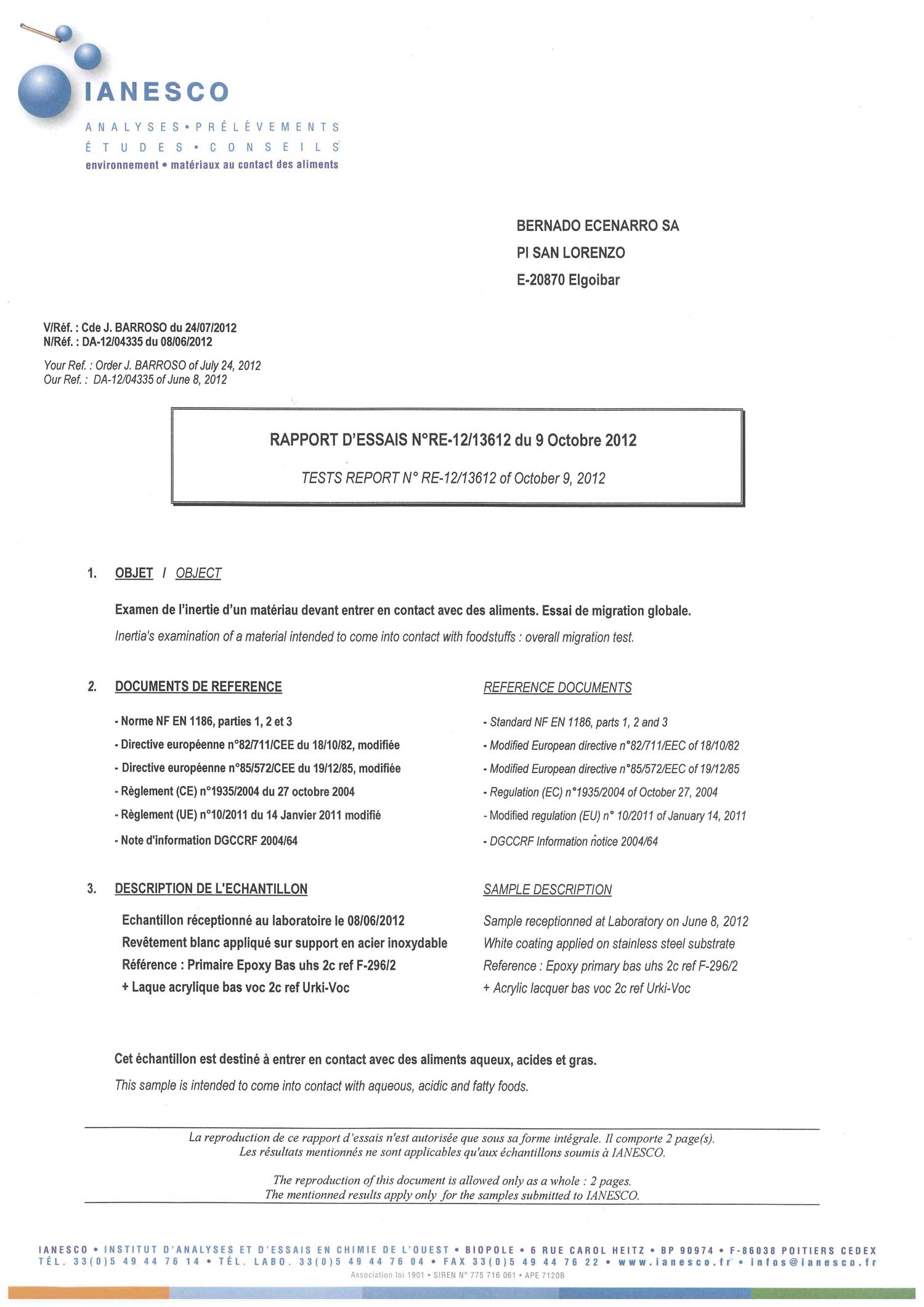

The system is certified by IANESCO (12/13612) and meets the limits of global migration for the simulants B and D2, that represent some non alcoholic, aqueous, acid and fatty food.
PRODUCTS
F-296/2
2K UHS Epoxy Primer
| Physical properties | |
|---|---|
| Type of product | Zinc Phosphate Epoxy Polyamide |
| Density 20 °C | 1,68 ± 0,05 |
| Supply viscosity at 20 °C | 70 - 75 KU (Stormer) |
| Solid Content (% weight) | 41 - 45% (mixed with hardener) |
| Solid Content (% volume) | 43 - 47% (mixed with hardener) |
| V.O.C. | 456 g/l (ready to use) |
| Color | Grey 7035, Beige 1111 |
| Features of dry film | |
|---|---|
| Theoretical yield | 8 - 9 m² / l. (50 my) |
| Gloss 60 - 60° | Matt Satin |
| Recoatability | 20 - 30 min. |
URKI-VOC
2K Low Voc Acrylic Enamel
| Physical properties | |
|---|---|
| Type of product | Polyester Polyurethane |
| Density 20 °C | 1,05 - 1,30 |
| Supply viscosity at 20 °C | 80 - 90 KU (Stormer) |
| Solid Content (% weight) | 55 - 64% (mixed with hardener) |
| Solid Content (% volume) | 54 - 58% (mixed with hardener) |
| V.O.C. (2004/42/CE) II B. (d) (420) | 417 g/l (ready to use) |
| Color | s/m URKI-SYSTEM |
| Features of dry film | |
|---|---|
| Theoretical yield | 10 - 11 m² / l (40/60 my) |
| Gloss 60 - 60° | > 90% |
| Recoatability | 3 h. after cabin drying. To use it as antigraffiti, it needs to be sanded and degreased. |
IMPLEMENTATION PROCESS
SURFACE PREPARATION
STEEL, ALUMINIUM & GALVANIZED
The surfaces should be thoroughly degreased and deoxidized.
APPLICATION
F-296/2
E-344 5,5:1 weight
24 h
25-35"
No dilution. For touch up.
URKISOL 357 / 394 10-15% Ø 1,6-1,8 mm.
50-100 my
Non sticky 45'
15-30' 80 °C/30 min. (In cabin)
URKISOL 394 3% max. 0,013-0,015"
URKISOL 394 3% max. 0,013-0,015"
URKI-VOC
Medium E-225/E-243 Fast E-202/E-203
3 h
20±2"
URKISOL 8229 / 3700 20-25% 1,4-1,6
55-65 my
4-5h E-225/E243 3-4h. E-202 2,5h. E-203 Non Sticky.
Onda media E-225/E-243 20' E-202 15' E-203 12'
15-30' 60-70 ºC/30' (In cabin)
URKISOL 8229 / 3700 0-5% 0,009-0,011”
