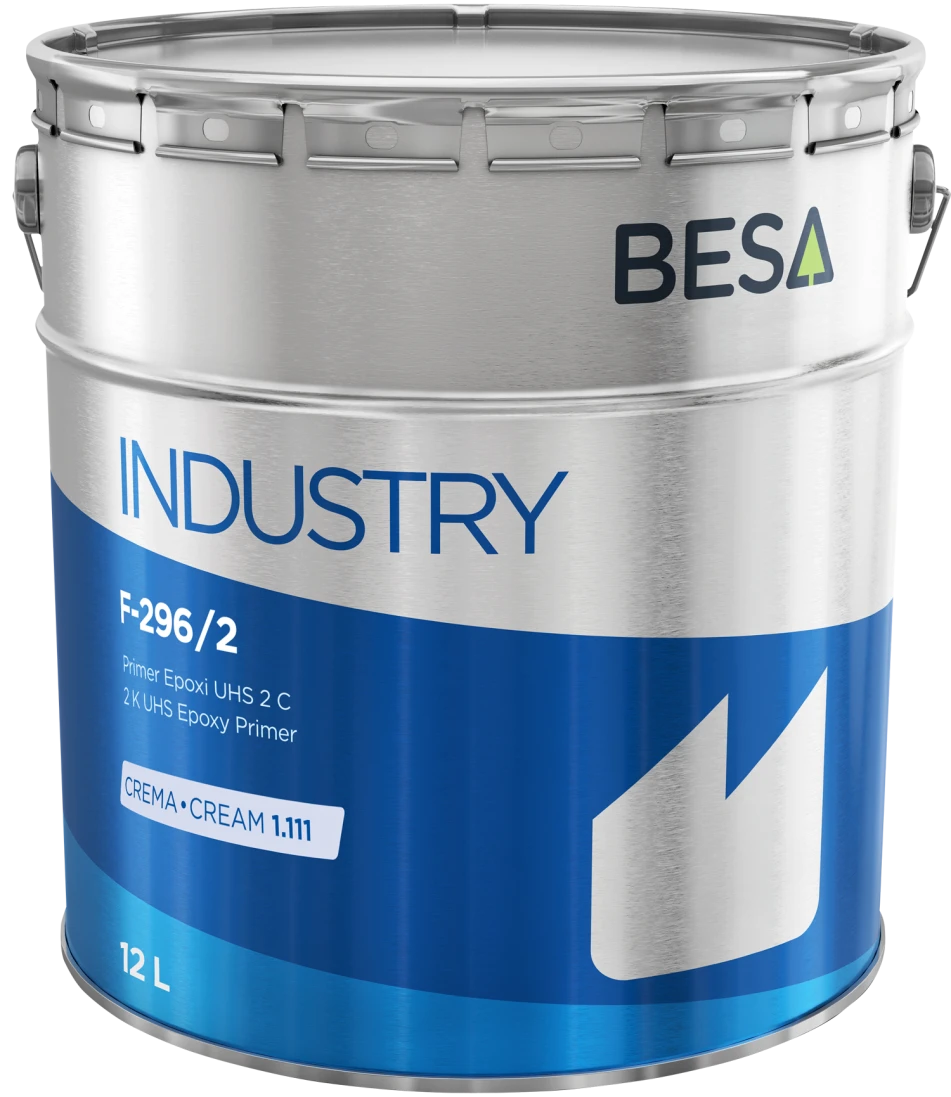

F-296/2 2K UHS Epoxy Primer

detail 2 f 296
General Information
Compatibility and surface Application
Steel Airbrush
Aluminum Airmix
Galvanized Airless
Iron Brush - roller
Quality Gloss
2K Matt
Can size

PRODUCT DESCRIPTION

High solids primer based on an epoxy resin hardened with polyamide and a high percentage zinc phosphate pigmentation. It provides an excellent anti-rust protection. Fast drying and recoatability.
Suitable for high resistance processes in 2K systems. Painting of lorry tank coating, cement mixers, trailers, metallic structures, etc.
Excellent adhesion on steel, aluminium and galvanized.

F-296/2 meets the requirements of category C3 and C4 HIGH s/UNE ISO 12944-2 certified by an external laboratory ( Steel Sa 2½ and finished with ALFA-PUR 3790 and URKI-VOC respectively).

APPLICATION

  • industry regleta
  • volumen mezcla industry E-344 5,5:1 p./3:1 vol.
  • pot life industry 24 h.
  • aplicacion ford industry copa 25-35"
  • brocha industry Not diluted For retouch
  • pistola succion industry Urkisol 394 / 357 10-15 %
  • pistola industry numero succion manos 50-100 my
  • industry secado tiempo 45' Tack free
  • disolventes evaporacion industry 15-30 ́ 80°C/30' (In cabin)
  • industry air mix URKISOL 394 3 % max. 0,013-0,015"
  • industry less air URKISOL 394 3 % max. 0,013-0,015"

Air-less Spray-gun: Max. 3% vol. of URKISOL 394, in two crossed coats. When applied in high temperatures we recommend to use URKISOL 395 or URKISOL 397.

DATA SHEET

PHYSICAL PROPERTIES

Density at 20°C (g/cc)1,68 ± 0,05
Grinding Fineness (μ)15 - 25
Supply viscosity at 20°C70 - 75 KU (Stormer)
% Solids content (weigth / volume)

68% ± 2 weight; 43% ± 2 volume. (Mixture with hardener)

VOC (g/l)

456 (Ready to use) - (2004/42/CE) IIB (C) (540)

Type of product

Epoxy-Polyamide

ColorCream 1111

SURFACE PREPARATION

Deoxidising and manual degreasing of the surfaces: previous sand-blasting Sa 2,5 is recommended.
In order to apply the product correctly the temperature should exceed 10°C and the relative humidity should be below 75%.
Oven drying is allowed at 80-100°C for 15-30 min.
It can be repainted with URKI-POX, ALFA-PUR 3748, ALFA-PUR 3790, URKI-NATO, BESA-GLASS, URKI-GLASS. URKI-VOC on LOW VOC systems.

FEATURES OF DRY FILM

Theoretical yield (m2/l)8-9 (50 µm)
Gloss 60° - 60°

Matt-Sat. 5-10%

Second layer20-30'

STORAGE

Keep under cover in a cool and well-ventilated place avoiding direct sunlight. Temperatures between 5 and 30°C recommended.
Can life: 2 years from manufacturing in date its original unopened container. Consult our technical department once date has expired.
